Technogen Enterprise

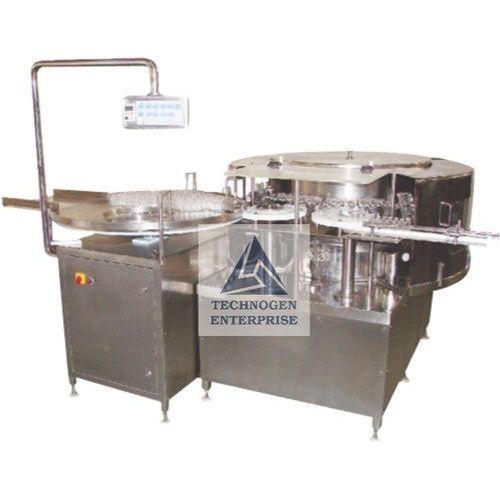

AUTOMATIC ROTARY VIAL WASHING MACHINE

2.30 Lac - 40 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Trader
Brand Name Technogen
Material Stainless Steel
Driven Type Electric
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Condition
New
Automatic Grade
Automatic
Power
6-9kw, 3-6kw
Application
To Wash the vial
Feature
Rust Proof, Low Maintainance, Long Life, High Performance, Good Capacity, Easy To Operate
Voltage
440V
Capacity
120 Vial / Min(Depend On Size Of Vial)
Type
Automatic Rotary Vial Washing Machine
Weight
500-1000kg
Installation
Service provided for installtion
Warranty
1year
After-Sales Service Provided
Yes
Country of Origin
India
I Deal In
New Only
Type of Machine
Industrial Vial Washing Machine
Frequency
50 Hz
Model
TGVW-120-R
Overall Dimension
2130 mm (L) X 1650 mm (W) X 1500 mm (H)
Machine Design
Rotary Continuous Motion
Washing Zone
15 Station Each is Equipped with 3 Gripper
Vial Diameter
55 mm
Vial Height
110 mm
Vial Neck Size
32 mm
Product Code
TGVW120R
Port
Mundra, Gujarat
Payment Terms
L/C, T/T
Delivery Time
4 week
Packaging Details
Sea worthy Packaging

Technogen Enterprise stands out as a noteworthy manufacturer, supplier, and exporter of the highly efficient Automatic Rotary Vial Washing Machine, catering to the needs of pharmaceutical and injectable formulation plants. This state-of-the-art machine is designed to perform the crucial task of washing both the external and internal surfaces of vials in a Rotary Continuous Motion. The machine utilizes a cutting-edge Gripper system that securely holds the vial from its neck, then inverts it during the washing process, and finally releases the vial onto the outfeed starwheel in a vertical position.



The Automatic Rotary Vial Washing Machine boasts a well-designed dome, housing six washing stations, which efficiently execute three different types of internal water washes. These include Recycled Water Wash, Purified Water Wash, and WFI Wash. Additionally, the machine features three air washes to ensure thorough and effective cleaning of the vials' internal surfaces. To complement the internal cleaning process, the machine is equipped with one air wash and one water wash for the external surface cleaning of the vials.



At Technogen Enterprise, we prioritize the development of high-performance and reliable solutions that meet the stringent requirements of pharmaceutical and injectable formulation industries. Our Automatic Rotary Vial Washing Machine exemplifies our commitment to excellence, precision, and efficiency. Experience the benefits of cutting-edge technology and unmatched performance with Technogen Enterprise as your trusted partner for all your vial washing needs.





Feature:

  • CGMP Model
  • Washing process visible.
  • Infeed turntable to feed vial to washing station.
  • Worm Gear box and Motor for Main Machine drive.
  • Servo driven / Mechnical Cam dive-in type washing nozzles.
  • Water heater for Recycled water tank with temperature controller .
  • Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air.
  • Suitable filtration system Purified water ,WFI water ,Recirculated water & Air.
  • Pressure transmitter system for Air & Water with Interlock.
  • Temperature transmitter system for Monitoring recycled water temperature with Interlock.
  • Aseptic diaphragm type valves for Air/Water medium.
  • Material of Construction of all Crtitical contact parts with internal surface of Vials & the wash media are made from AISI 316L.
  • SS 316 suitable piping duly Orbital welded & Electro polished.
  • Vapour exhaust system with blower to drain condensate (Ducting in Customer Scope)
  • Auto Drain Facility at the End Of Batch (Optional)
  • Washing station & outfeed of washing machine will be covered by Polycarbonate cover
  • PLC with touch screen HMI .
