Technogen Enterprise

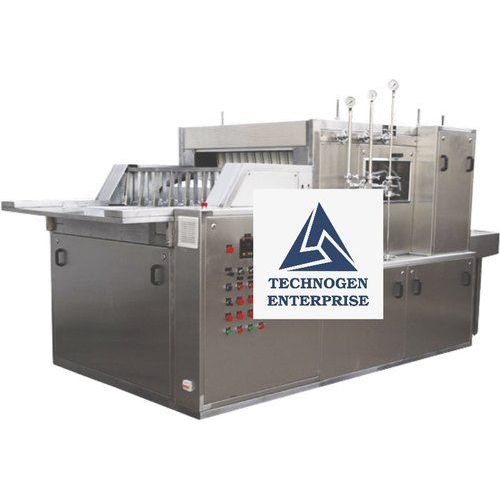

AUTOMATIC TUNNEL TYPE LINEAR VIAL WASHING MACHINE

11 Lac - 22 Lac / Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Trader
Brand Name Technogen
Material Stainless Steel
Driven Type Mechanical
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Condition
New
Automatic Grade
Automatic
Power
3-6kw
Application
Vial Washing
Grade
Automatic
Feature
Long Life, High Performance, Good Capacity, Easy To Operate
Voltage
440 V
Capacity
240 Vial Per Min
Type
Automatic Linear Vial Washing Machine
Warranty
1year
After-Sales Service Provided
Yes
Country of Origin
India
I Deal In
New Only
Air Consumption
50 CFM depending upon the Machine Model & Vial size
Frequency
50 Hz
Power Source
Electric
Model Name/Number
TGVW-240T
Direction
Left to Right
Vial Sizes
100 ml
Conveyor Height
750 mm
Washing Sequence
10 Internal Washes 2 External Washes
Tanks
3 nos of AISI 316L tanks ( 1 Each for Re-circulation Water, DM Water and WFI Water)
No of Filter
Filter for recycled water , DM Water & Compressed Air And WFI water
Product Code
TGVW240T
Port
Mundra, Gujarat
Payment Terms
L/C, T/T
Delivery Time
4 week
Packaging Details
Sea worthy Packaging

Technogen Enterprise proudly stands as a distinguished manufacturer, supplier, and exporter of the state-of-the-art Automatic Tunnel Type Linear Vial Washing Machine. This advanced machine is meticulously designed and manufactured to ensure thorough and efficient washing of both the internal and external surfaces of vials and glass bottles in a linear intermittent motion. It is a widely acclaimed solution in the pharmaceutical and injectable formulation industries, providing unparalleled performance and precision. Our various models are available to cater to different production demands, with speeds ranging from 50 vials per minute to an impressive 400 vials per minute.



The Automatic Tunnel Type Linear Vial Washing Machine is equipped with three AISI 316L tanks, each with its dedicated pump. These tanks facilitate the re-circulation of water, DM water, and WFI water, ensuring the highest level of cleanliness and hygiene. With a total of 10 internal washes and 2 external washes, this machine guarantees a comprehensive and thorough cleaning process for the vials. We understand the significance of meeting specific requirements, and thus, we offer customization options for the washing sequence to suit the unique needs of our valued clients.





At Technogen Enterprise, we pride ourselves on delivering cutting-edge solutions that adhere to the highest industry standards. Our Automatic Tunnel Type Linear Vial Washing Machine is a testament to our commitment to excellence, performance, and customer satisfaction. Experience unparalleled efficiency and precision with Technogen Enterprise as your trusted partner for all your vial washing needs.





Salient Feature:

  • CGMP Model.
  • Machine body is constructed using Fine grade of SS 304 Material.
  • Sturdy Construction of Machine allow trouble free Continous operation.
  • Seperate Worm Gear Box & Motor for Machine & Conveyor.
  • Three types of water washes such as Recycled Water Wash, Purified Water Wash & WFI followed by Sterile Compressed Air.
  • High Pressure Spraying Nozzles ensures perfect wash of vials.
  • Washing chamber having various spray zones and Water spray duration is electrically controlled.
  • Washing Cycle & Washing Timing can be adjusted depending upon the requirement.
  • 3 NOS of SS 316L tank with Centrifugal Pumps. 1 No. each for Re-circulation Water, DM Water and WFI Water.
  • 4 NOS of Glycrine filled Pressure Gauges. (1 No. each for DM, WFI, Re-cycled Water & Compressed Air)
  • No Change Parts required for washing of 5ml to 30ml vials.
  • All parts coming in contact with washing zones / jet as well as All pipe fittings in Contact with water are made of SS 316 materials.
  • Washing Sequence can be changed according to requirement.
  • Water recycling arrangement is possible according to user requirement.
  • Inbuilt Infeed SS-304 Wiremesh Conveyor
  • Variable Freqeuncy Drive for Speed Control
  • Emergency Switch on Control Panel & Outfeed.
  • Outfeed of the machine can connect directly to Sterilizing Tunnel or can collect it in the trays.
  • All Electronics & Electrical are CE Certified
